ASTM A860 WPHY 42 Fittings | WPHY 42 Elbow Manufacturer

WPHY 42 Elbow Manufacturer in China, Used in High-pressure

Table of Content

ASTM A860 WPHY 42 Fittings Specification
Types of ASTM A420 WPL6 Fittings
WPHY 42 Tee Dimensions Chart
A860 WPHY 42 Pipe Fitting Dimension Chart
ASTM A860 WPHY 42 Elbow Dimensions
Weight Chart Carbon Steel Grade 42 Welded Fittings
Pressure Ratings API 5L X42 Seamless Fittings
Schedule Chart of Carbon Steel Grade 42 Welded Fittings
Chemical Composition of MSS SP75 WPHY 42 Concentric Reducer
Mechanical Properties API 5L X42 Seamless Fittings
Equivalent Grade Of Carbon Steel Grade 42 Welded Fittings
HS Code of ASTM A860 WPHY 42 Fittings
Thermal Conductivity Of A860 WPHY 42 Elbow
What Are Industrial Processes of WPHY 42 Buttweld Fittings
BWhat Types of Testing Are Performed For Yaye Industrial ASTM A420 WPL6 Fittings?

Supplier of API 5L X42 Buttweld Fittings With High Strength & Refer MSS SP75 WPHY 42 Fittings Specification & Testing Methods

ASTM A860 WPHY 42 Fittings Specification

MSS SP75 WPHY 46 Fittings Sizes

Buttweld Size: 1/2″ To 36″
Seamless Size : 1/2″ To 24″
Welded Size :24 To 96″

ASTM A860 WPHY 52 Elbow Common Thickness

Schedule : 80 To 120
Schedule 20 & 40
Schedule : 160 To 180

A860 WPHY 60 Tee Standards

ASME B16.9

A860 WPHY 46 Welded Fittings Testing

Chemical Analysis
PMI Test
Mechanical Testing
Hardness Test

WPHY 65 End Cap Density

7.8 - 7.9 g/cm³

WPHY 65 Seamless Fittings Melting Point

1370–1420 °C

A860 WPHY 42 Bend life

>5 years

A860 WPHY 60 Concentric Reducer Hardness

235 Brinell

A860 WPHY 60 Welded Fittings Types Of Coating

Back painting
Zinc coatings
Anti rust
PE/ PTFE/ FBE coating

Carbon Steel Grade 42 Reducer Manufacturing Process

Welding
Casting
Forged
Pushing

Types of A860 WPHY 42 Seamless Pipe Fittings

Pipe bend
Reducer,End cap
Elbow, Tee, Stub end
Pipe cross

ASTM A860 WPHY 52 Welded Pipe Fittings Origins

Qatar
Germany
China
Indonesia, India

WPHY 65 Butt Welding Fittings Applications

Chemical processing
Petrochemicals
Pharmaceuticals
Wastewater Plants

ASTM A860 WPHY 65 Butt Welded Joint Documentation

Fumigation certificates
Raw material test reports
Heat treatment charts
Material traceability records

MSS SP75 WPHY 46 Buttweld Fittings Process

Threaded End (TE)
Plain End (PE)
Bevelled End (BE)

Methods of ASTM A860 WPHY 52 Elbow

Buttweld
Welded
Seamless

A860 WPHY 46 Welded Fittings Bending

Outer diameter
Thickness, Length
Inner diameter
Straightness, Ovality

A860 WPHY 60 Tee Disadvantages

Welding Difficulties
May Corrode
Higher Cost
Temperature

WPHY 65 Seamless Fittings Packaging

Bundled
Bubble Wraps
Wooden Box

WPHY 65 End Cap Advantages

Strength
Durability
Easy fabrication
Versatile

Types of ASTM A420 WPL6 Fittings

ASTM A860 WPHY 42 Fittings Supplier in China Prvoides Multiple varieties of the generally used fittings types.

WPHY 42 Buttweld Fittings

A860 WPHY 42 Elbow

Carbon Steel Grade 42 Welded Fittings

MSS SP75 WPHY 42 Tee

API 5L X42 Seamless Fittings

API 5L X42 End Cap

MSS SP75 WPHY 42 Concentric Reducer

Carbon Steel Grade 42 Bend

A860 WPHY 42 Reducer

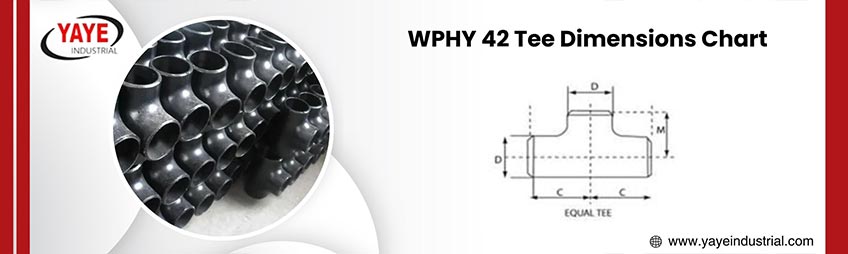

WPHY 42 Tee Dimensions Chart

ASTM A860 WPHY 42 Fittings Manufacturer in China offers a Wide Range of Dimensions For Fittings

NPS	Center-End		O.D. (Outer Daimeter) at bevel
NPS	Outlet (M)	Run (C)	O.D. (Outer Daimeter) at bevel
1"	38	38	33.4
1/2"	25	25	21.3
22"	419	419	559.0
4"	105	105	114.3
3/4"	29	29	26.7
2"	64	64	60.3
1 1/4"	48	48	42.2
16"	305	305	406.4
1 1/2"	57	57	48.3
2 1/2"	76	76	73.0
6"	143	143	168.3
3"	86	86	88.9
3 1/2"	95	95	101.6
5"	124	124	141.3
10"	216	216	273.0
8"	178	178	219.1
12"	254	254	323.8
24"	432	432	610.0
18"	343	343	457.0
14"	279	279	355.6
20"	381	381	508.0

A860 WPHY 42 Pipe Fitting Dimension Chart

NPS	O Dia		Straight Crosses	Caps	Straight Tees	Stub Ends
inch	mm	inch	Center to End (inch)	Len (inch)	Center to End (inch)	Lap Diar (inch)	Long Len (inch)	Short Len (inch)
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1/2	21.3	0.840	–	1	1	1 3/8	3	2
5	141.3	5.563	4 7/8	3	4 7/8	7 5/16	8	3
1 1/4	42.2	1.660	1 7/8	1 1/2	1 7/8	2 1/2	4	2
6	168.3	6.625	5 5/8	3 1/2	5 5/8	8 1/2	8	3 1/2
3/4	26.7	1.050	–	1	1 1/8	1 11/16	3	2
8	219.1	8.625	7	4	7	10 5/8	8	4
3	88.9	3.500	3 3/8	2	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	3 3/4	2 1/2	3 3/4	5 1/2	6	3
10	273.1	10.750	8 1/2	5	8 1/2	12 3/4	10	5
2	60.3	2.375	2 1/2	1 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	3	1 1/2	3	4 1/8	6	2 1/2
4	114.3	4.500	4 1/8	2 1/2	4 1/8	6 3/16	6	3
1 1/2	48.3	1.900	2 1/4	1 1/2	2 1/4	2 7/8	4	2
12	323.9	12.750	10	6	10	15	10	6

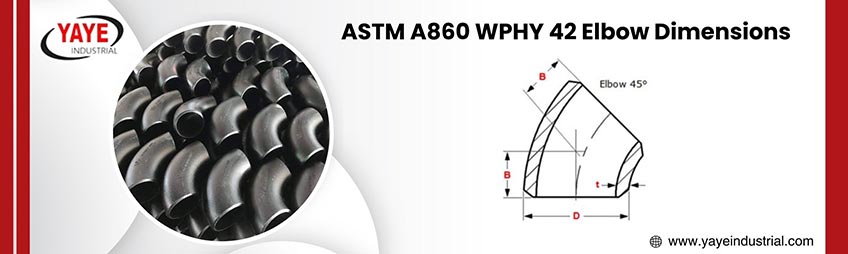

ASTM A860 WPHY 42 Elbow Dimensions

NPS	OD(D)	Center-End Of (A)	Center-End Of (B)	Center-End Of (A)	Center-End Of (B)
1¼	42.2	95	39	48	25
1/2	21.3	–	–	38	16
3/4	26.7	57	24	38	19
1	33.4	76	31	38	22
2	60.3	152	63	76	35
6	168.3	457	189	229	95
2½	73	190	79	95	44
14	355.6	1067	441	533	222
18	457	1372	568	686	286
3	88.9	229	95	114	51
3½	101.6	267	111	133	57
8	219.1	610	252	305	127
12	323.8	914	378	457	190
4	114.3	305	127	152	64
22	559	1676	694	838	343
5	141.3	381	157	190	79
46	1168	3505	1453	1753	727
10	273	762	316	381	159
16	406.4	1219	505	610	254
26	660	1981	821	991	406
44	1118	3353	1389	1676	695
1½	48.3	114	47	57	29
48	1219	3658	1516	1829	759
34	864	2591	1073	1295	533
28	711	2134	883	1067	438
24	610	1829	757	914	381
30	762	2286	964	1143	470
38	965	2896	1200	1448	600
20	508	1524	632	762	318
40	1016	3048	1264	1524	632
32	813	2438	1010	1219	502
36	914	2743	1135	1372	565
42	1067	3200	1326	1600	660

Weight Chart Carbon Steel Grade 42 Welded Fittings

DN	Schedule 10S			Schedule 80S			Schedule 40S
900 Elbow	Equal tee	450 Elbow	900 Elbow	Equal tee	450 Elbow		Equal tee	450 Elbow	900 Elbow
20	0.03	0.07	0.13	0.05	0.11	0.20	0.04	0.08	0.17
300	13.62	25.80	39.46	39.69	79.38	83.91	29.71	59.42	62.14
15	0.03	0.06	0.09	0.05	0.10	0.14	0.04	0.08	0.10
8	0.01	0.02	0.03	0.03	0.04	0.07	0.02	0.03	0.06
10	0.02	0.03	0.05	0.04	0.06	0.09	0.02	0.03	0.03
25	0.08	0.14	0.28	0.14	0.22	0.38	0.11	0.15	0.29
40	0.17	0.30	0.68	0.29	0.51	1.02	0.23	0.40	0.86
150	2.72	5.45	8.07	8.16	16.32	13.61	5.44	10.89	10.99
250	9.75	18.15	26.46	25.86	51.71	49.90	19.27	38.56	35.38
50	0.25	0.50	0.85	0.59	0.91	1.59	0.4	0.70	1.28
32	0.11	0.23	0.49	0.23	0.40	0.68	0.17	0.26	0.59
65	0.48	0.85	1.41	0.99	1.81	3.13	0.77	1.40	2.19
90	0.75	1.70	2.67	2.00	4.00	5.44	1.42	2.83	4.08
100	1.08	2.10	3.46	2.81	6.18	7.71	2.09	4.47	5.27
80	0.63	1.25	1.77	1.50	2.97	4.45	1.08	2.20	3.31
200	5.33	10.20	15.65	16.56	33.11	28.12	10.77	21.54	20.91

Pressure Ratings API 5L X42 Seamless Fittings

NPS	Wall Thick	Working Pressure
NPS	Wall Thick	750	-20 to 650	700	800
1 1/4	0.191	1670	1935	1851	1391
1/2	0.147	2615	3030	2898	2181
2	0.218	1437	1665	1592	1198
3/4	0.154	2240	2595	2482	1868
1	0.179	2253	2610	2496	1879
3 1/2	0.318	1437	1665	1592	1198
4	0.337	1372	1590	1521	1144
3	0.300	1528	1770	1693	1274
2 1/2	0.276	1670	1935	1851	1393
8	0.500	1165	1350	1291	972
14	0.500	699	810	774	583
5	0.375	1269	1470	1406	1058
10	0.500	919	1065	1018	766
6	0.432	1269	1470	1406	1058
12	0.500	777	900	861	648
18	0.500	543	630	602	453
1 1/2	0.200	1566	1815	1736	1306
20	0.500	492	570	545	410
24	0.500	401	465	444	334
30	0.500	326	377	362	270
42	0.500	232	269	258	193
36	0.500	272	314	301	225
16	0.500	608	705	674	507
48	0.500	203	235	226	169

Schedule Chart of Carbon Steel Grade 42 Welded Fittings

DN	Sched 40S					Sched 10S
DN	45° Elbow	Equal tee	90° Elbow	Stub end type (B)	End cap	45° Elbow	Equal tee	90° Elbow	End cap	Stub end type (B)
40	0.23	0.86	0.40	0.31	0.20	0.17	0.68	0.30	0.11	0.25
100	1.47	5.27	4.47	1.87	1.14	1.08	3.46	2.10	0.68	1.09
450	59.40	129.73	129.73	27.21	26.00	29.94	79.65	59.87	13.00	17.23
400	45.81	99.79	99.79	20.41	21.00	23.81	58.97	47.63	10.67	12.70
15	0.04	0.10	0.08	0.08	0.04	0.03	0.09	0.06	0.03	0.07
65	0.77	2.19	1.40	0.80	0.27	0.48	1.41	0.85	0.19	0.57
500	74.84	162.39	162.38	29.94	34.00	49.90	103.42	99.80	17.00	21.77
32	0.17	0.59	0.26	0.25	0.18	0.11	0.49	0.23	0.10	0.22
250	19.27	35.38	38.56	10.07	9.00	9.75	26.76	18.15	4.45	5.13
350	35.15	79.31	79.38	17.14	16.00	18.37	48.53	36.29	8.17	10.88
80	1.08	3.31	2.20	1.13	0.42	0.63	1.77	1.25	0.25	0.72
125	2.84	9.63	6.80	2.79	2.13	1.82	5.44	3.65	1.11	1.47
200	10.77	20.91	21.54	6.07	5.19	5.33	15.65	10.20	2.38	3.22
150	5.44	10.99	10.89	3.57	3.23	2.72	8.03	5.45	1.42	2.15
300	29.71	62.14	59.42	14.29	15.00	13.62	39.46	25.80	7.50	8.16
50	0.40	1.28	0.70	0.61	0.23	0.25	0.85	0.50	0.13	0.43
25	0.11	0.29	0.15	0.17	0.10	0.08	0.28	0.14	0.08	0.16
20	0.04	0.17	0.08	0.11	0.07	0.03	0.13	0.07	0.05	0.09
600	105.23	225.90	225.89	38.55	52.00	70.31	155.58	140.61	26.00	27.21
